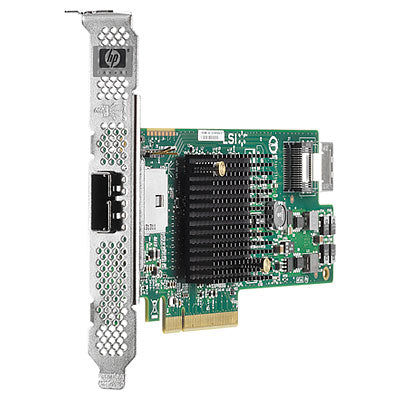

660086-001 HP H222 SAS/SATA HBA

660086-001 HP H222 SAS/SATA HBA

Regular price $285.00 NZD
Regular price Sale price $285.00 NZD
Sale Sold out
Overview:

The HP H222 Host Bus Adapter is a 1X4 external port and 1x4 internal port HBA provides customers with the flexibility and speed they have come to expect from HP . The H222 HBA is ideal for internal and external connectivity to tape drives - HDDs - and external JBODs and provides support for both 6 Gb SAS and SATA Hard Disk Drives. In addition - H222 HBA controller provides support for SAS tape drives. H222 HBA can also provide high performance for SSDs that do not require data protection. This SAS HBA is ideal for driving cost-effective and reliable scalability in today's data centers.



Specifications:
Category HP Option
Sub-Category Host Bus Adapter
Generation H222
Part Number 660086-001
Products ID 725312
Manufacturer HP
Host Interface PCI Express 3.0 x 8
Controller Type Serial ATA/600
SAS Ports 2
SAS Ports (Internal) 1x4
SAS Ports (External) 1x4
SAS Connector Details 2 SFF-8088
Height 2.7 inches
Width 6.6 inches
Thickness .6 inches
SAS Support 6Gbps
SATA Support 6Gbps
Combined Throughput 48Gbps
Max Capacity 330TB SAS/SATA
Memory Addressing 64-bit - Server Memory > 4 GB
Upgradeable Firmware 4-MB Flashable ROM
